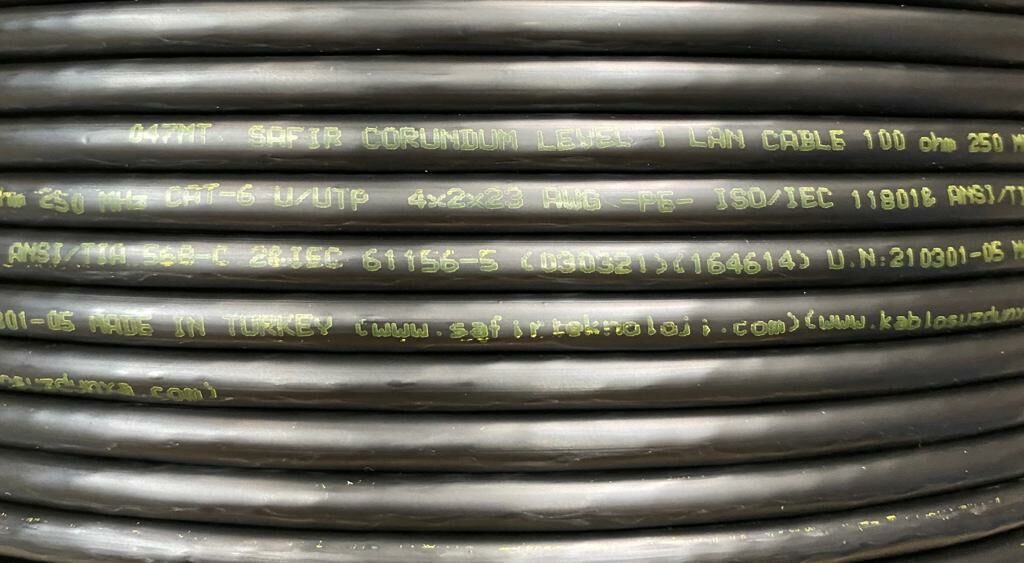

Safir Corundum Level 1 Cat6/23 AWG
|
rn Aklamas (Product Description) alma Scakl (Rated Temperature) : 60C , 75C , 90C Standart (Referance Standard) : TSIEC61156-5+A1 Mono Bakr Tel (Bare Soild Copper Conductor) RoHS-TSE Uyumlu D Klf ( RoHS-TSEComplied PVCJacket) Alev Testi(Flame Test) : CMX - CM - CMR Tesisat Scakl (Installation Temperature) : -30C ~ +50C |
Uygulama (Application) 100 Base - TX 100 Base - 100 VG - 1000 Base - T (Gigabit Ethernet) 1000 Base - TX ATM Grltl Ortamlar (Noisy Enveironments) |
|||||||||||
| BLG FORMU DETAYLARI - (CONTENT OF THE DATA SHEET ) | ||||||||||||
|
Kategori Category |
U/UTP CAT-6 - 4x2x23 AWG - PVC |
Elektriksel Karakteristik / Electrical Characteristics (20C) |
1,0-250,0 MHz Empedans / Impedance (Ω) 100 + 15 | |||||||||
|
Standart Test Standard |
ISO / IEC11801 |
1,0 - 250,0 MHz Grntleme Gecikmesi (ns/100m) ≤ 45 Delay Shew (ns/100m) |
||||||||||
|
letken Conductor |
Malzeme Material |
Mono Bakr(Cu) Solid Bare Copper |
NVP 69% | |||||||||
|
ap (mm) Nom. O.D. (mm) |
0,56 |
+ | 0,05% | Kapasitans - Capacitance (nF/100m) MAX 4,73 | ||||||||
| - | 0,05% | DC Diren - DC Resistance (Ω/100m) MAX 14,45 | ||||||||||
|
Yaltkan Insulation |
Malzeme Material |
HDPE |
DC letkenlik Diren Dengesizlik (%) max DC Conductor Resistance Unbalance (%) 5,0 |
|||||||||
|
Damar ap (mm) Diameter (mm) |
1,00 + 0,03 |
D Klf zellikleri / Sheat Physical Properties |
Yalandrma ncesi ekme Mukavameti Before Aging Tensile Strength (Mpa) ≥ 13,5
Uzama - Elongation (%) ≥ 150 |
|||||||||
|
D Klf Sheath |
Et Kalnl (Thickness) | 0,55 + 0,05 mm | ||||||||||
|
D Klf ap (mm) External O.D .(mm) |
6,2 + 0,4 mm |
Yalandrma Sresi (C x hrs) 100C x 24s x 7g Aging Period (C x hrs) 100C x 24h x 7d |
||||||||||
|
Yzey Surface |
Temiz,Sk,Dolgun Clean,Frap,Satiation |
Yalandrma Sonras ekme Mukavameti After Aging Tensile Strength (Mpa) ≥ 12,5
Uzama - Elongation (%) ≥ 125 |
||||||||||
| Malzeme - (Material) | LSZH | |||||||||||
|
Renk - (Color) |
Talebe Gre According To Requires |
Soukta Esneme (-20+2Cx4s) 8 Damar atlama Yok Cold Bend (-20+2Cx4h) 8 Cable O.D. No Visible Cracks |
||||||||||
|
Yzey Yazs Surface Printing |
Harf Ykseklii - (Letter Height) |
3,0 + 0,3mm |
Perleme Renkleri Core Color |
Mavi-Beyaz / Mavi Blue-White / Blue |
Turuncu-Beyaz / Turuncu Orange-White / Orange |
|||||||
| Renk - (Color) | Siyah - (Black) |
Yeil-Beyaz / Yeil Green-White / Green |
Kahve-Beyaz / Kahve Brown-White / Brown |
|||||||||
|
Yazm Hatas ve Boluk Print Error & Space |
≤ + 0,5% - 1m |
Ama pi Rip-cord |
Mevcut Yes |
Toprak Teli Drain Wire |
Yok No |
|||||||
|
Paketleme Packing |
Tahta Makara Wooden Spool |
Mavi-Beyaz/ Mavi Turuncu-Beyaz /Turuncu Blue-White/ Blue Orange-White / Orange
Klf - Sheath
Ayra - Seperator p - Rip-cord |
||||||||||
|
Metraj Packing Length |
305 + 1,5 m | |||||||||||
|
Makara Boyutu Dimension |
290 x 260 mm |
|||||||||||
| Kahve-Beyaz / Kahve Brown-White / Brown | Yeil-Beyaz / Yeil Green-White / Green | |||||||||||
